Riveted inside and outside skirt: 3 hours

• Attached inside skirts to frame with pull rivets
• Riveted inside skirt to outside skirt with soft rivets and hand squeezer
• As recommended on the vaf forum I went over all the exterior soft rivets with thin CA glue. This is supposed to lock the rivets into the fiberglass.
• I also attached the track and the velcro tabs for the Koger sunshade.

Getting there!

Left side inside skirt riveted to frame:

Left side inside skirt in progess:

Canopy skirt work: 4 hours

• Modified inside skirts to clear pin blocks
• Drilled inside skirts to outside skirt
• Repainted inside skirts
• Countersinked holes for soft rivets in outside skirt
• Removed canopy from fuselage

Ready to rivet:

Drilling right side:

Drilling left side:

Bonding went well:

Finished prep and skirt bonding: 3 hours

• Riveted on the support for the canopy lock and the canopy side handle
• Taped off inside of skirt for bonding
• Went over area to be bonded with scotchbrite pad
• Did a practice fit with Britt - this was a good move because I discovered that the slot for the canopy side handle did not fit because of the clear epoxy and paint - fixed with a small file
• Cleaned dust off of area to be bonded, wiped with sika 205 then after 10 minutes painted on sika 206 primer
• After 30 minutes for the primer to dry Britt and I attached the skirt
• We applied a lot of pressure around the edges to squeeze out any excess sika 295
• We then tipped up the canopy and pulled the interior tape, then closed and latched the canopy and pulled the top layer of exterior tape
• I taped down the skirt and weighted the top to minimize any gaps
• Later I pulled the final layer of outside tape. Next time I would do this sooner because the Sika had already cured somewhat so I will have to go back and trim it.

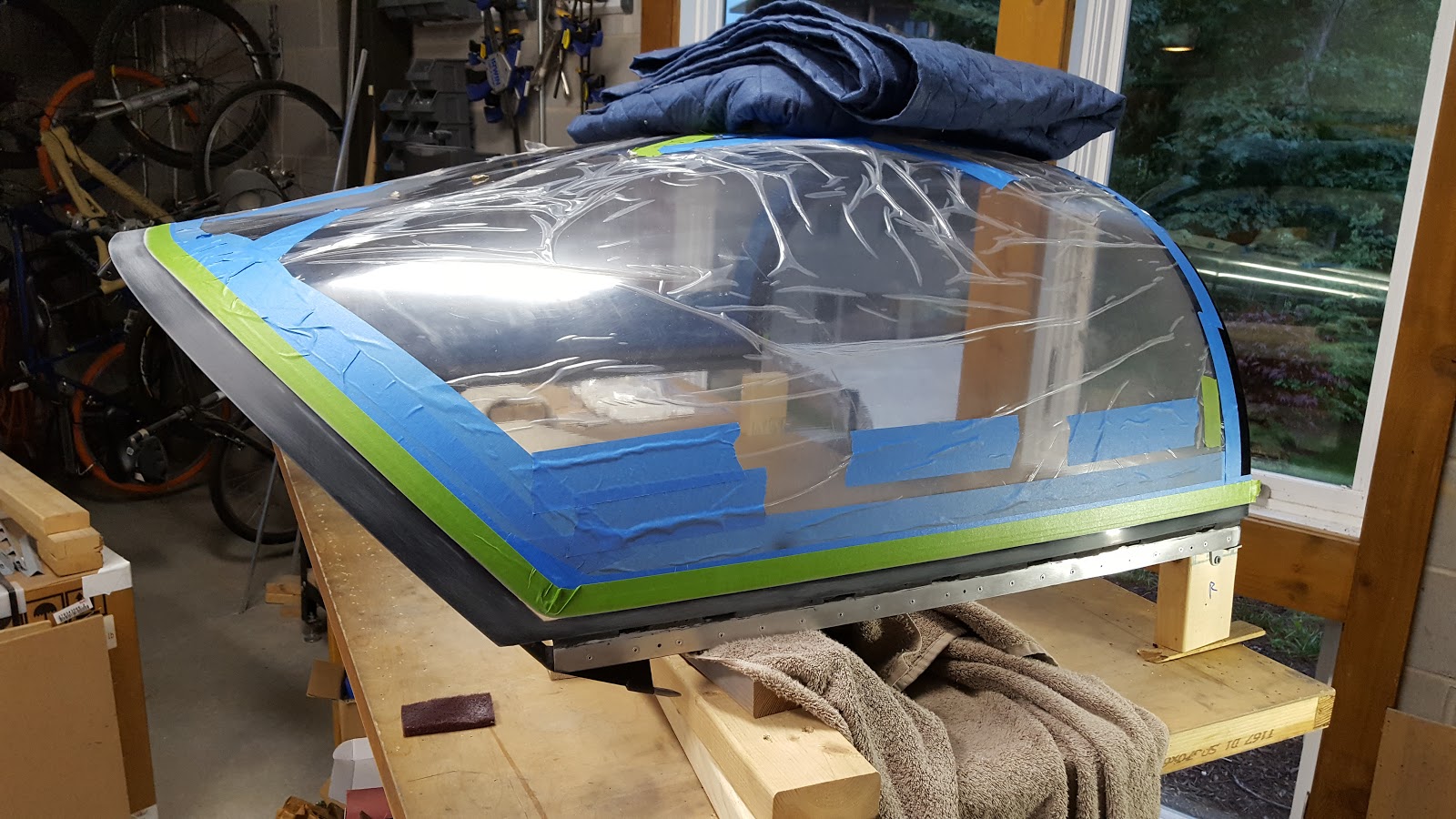

Curing, before I pulled the final tape layer:

Skirt primed with Sika 206:

Taped off:

Canopy lock support:

Practice fit:

Canopy skirt bonding prep: 3 hours

• Removed paint from canopy pins and applied clear epoxy
• Applied additional layer of tape to canopy which will get pulled immediately after bonding
• Scuffed areas to be bonded with red scotchbrite

Almost ready to bond:

Clear epoxy over pin:

Canopy skirt prep and painting: 6 hours

• Taped off the canopy for bonding to the skirt
• Taped off the inside of the skirt for painting
• Cleaned, prepped and painted inside of skirt with multiple coats of Rustoleum painters choice satin black which is supposed to adhere well to composite surfaces. I'm happy with the results.
• Primed and painted aluminum skirt supports but ended up with a run in one piece so I will sand and recoat.

Inside of skirt painted:

Area to be bonded taped off:

Canopy taped off for bonding:

Ready for more tape!

Canopy skirt prep: 6 hours

I had not done anything to the skirt since applying a thin coat of epoxy to fill pinholes so I spent a significant amount of time sanding and prepping it to be painted and bonded / riveted to the canopy assembly.

I found one area on the skirt that had some cosmetic defects that will be visible after installation so I filled the area with some micro then sanded.

I also started marking the skirt and canopy for taping for the sikaflex primer.

The above activities were accomplished over several days.

More sanding...

More filler...

Marking skirt for tape:

Made some blocks to work on canopy with skirt attached:
